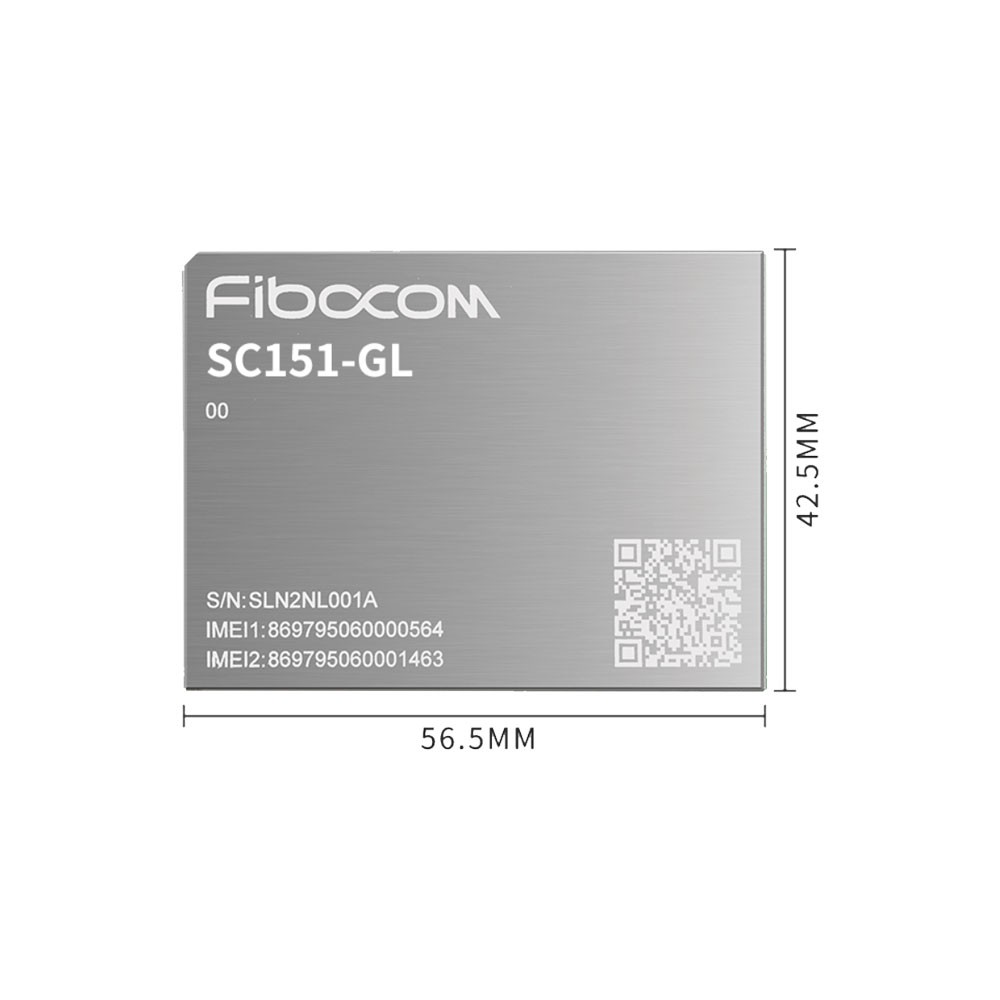

Fibocom SC151 is a 5G SoC smart module based on Qualcomm chipset QCM4490. It features with an Octa-core processor (2*A78@2.4GHz + 6*A55@2.0GHz) with a high-performance graphics engine Adreno 613.
It supports both 5G NSA and SA modes and is backward compatible with 4G/3G network. It supports 5G NR Sub-6GHz, DL 4x4 MIMO, UL 2x2 MIMO, as well as Wi-Fi 6/6E and Bluetooth short-distance wireless transmission. Furthermore, the module supports multi-constellation GNSS receiver (GPS(L1+L5)/ GLONASS/ BeiDou) for high-performance positioning and navigation, while greatly simplifying product design.
SC151 comes with the Android 13 operating system and a variety of interfaces such as MIPI, USB, UART, SPI, and I2C. These interfaces provide flexibility and easy integration to meet the diverse application demands of the IoT industry.
Fibocom SC151 smart module can be used in various 5G IoT applications, such as industry handhelds, body worn camera, PoC, IVI, smart ECR and smart home. It serves as an optimal solution for the core system of wireless products worldwide.
