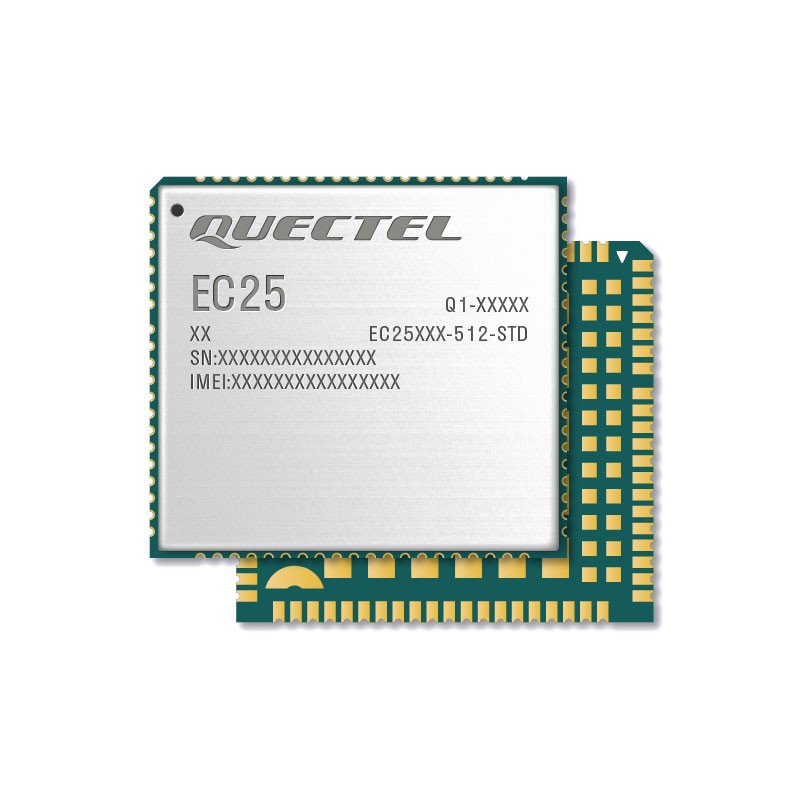

Quectel EC25EFA

The Quectel EC25-E is a high-performance and cost-effective LTE Cat 4 module that supports global frequency bands and a wide range of network standards. It is compatible with 3G and 2G networks, making it an ideal choice for various applications.

This module supports 4G LTE frequency bands including B1, B3, B5, B7, B8, B20, B28A, and B28B, allowing it to be used in global markets. It also supports 3G WCDMA bands including B1, B5, B8, and 2G GSM bands including B3, B8. With downlink speeds up to 150Mbps and uplink speeds up to 50Mbps, it provides fast and reliable connectivity.

The Quectel EC25-E module comes with several key features, including Built-in TCP/IP stack that enables easy integration with various applications. It also supports USB 2.0 and UART interfaces for flexible connectivity options. The module has a compact form factor and a wide operating temperature range of -40°C to +85°C, making it suitable for use in various environments.

Additionally, the Quectel EC25-E supports advanced security features such as secure boot and secure firmware update, ensuring data integrity and protection. It also supports GNSS positioning for accurate location tracking.

In summary, the Quectel EC25-E is a versatile and reliable LTE module that supports a wide range of wireless bands and network standards, making it suitable for various IoT applications. Its compact size, fast speeds, and advanced security features make it an ideal choice for global connectivity.
