FM190W-GL

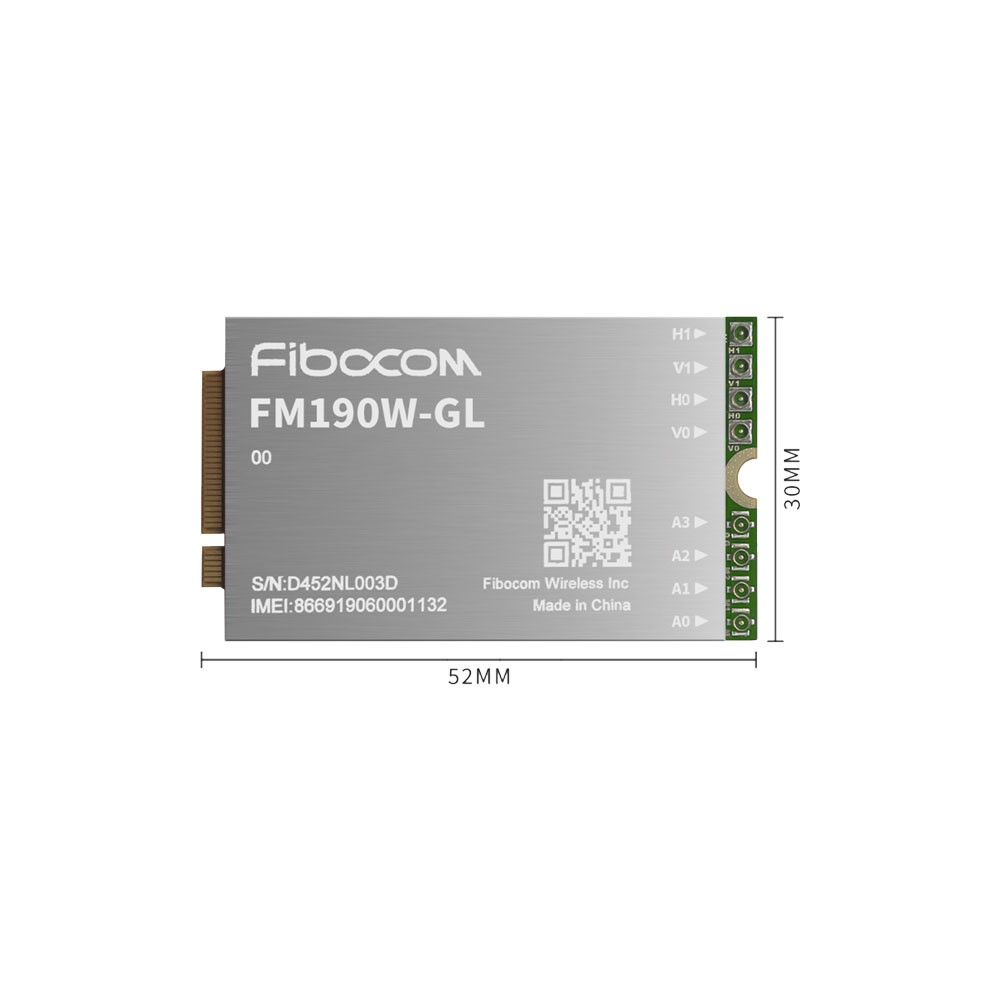

Fibocom FM190W-GL is a 5G Sub-6GHz and mmWave module. It empowers by the Qualcomm Snapdragon SDX75 and supports 5G standalone (SA) and non-standalone (NSA) network architectures, providing superior 5G experience connectivity and delivering optimized power consumption benefits for IoT applications. The module adopts M.2 form factor with dimensions of 30*52*2.3mm, which offers up to 300MHz bandwidth and downlink NR 5CA, FDD+FDD uplink carrier aggregation, and FDD uplink MIMO in the NR Sub-6GHz. While the mmWave frequency band offers up to 1000MHz bandwidth and downlink NR 10CA, delivering a high-speed experience in the home, enterprise, and manufacturing plants. The FM190W-GL features rich network protocols and integrates multiple interfaces, including USB 3.1/3.0/2.0, PCIe 4.0/3.0, I2S and more. It can be applied in gateways, video surveillance, industrial routers, drones, VR/AR, and more.
