Fibocom FM160-NA is a NR Sub 6 module with 3GPP Release 16, which is backward compatible with LTE/WCDMA network standards. Powered by the Qualcomm Snapdragon® X62 modem chipset, the module delivers maximum downlink rates of 3.5Gbps and uplink rates of 900Mbps under 5G, suitable for IoT applications that require high data throughput.

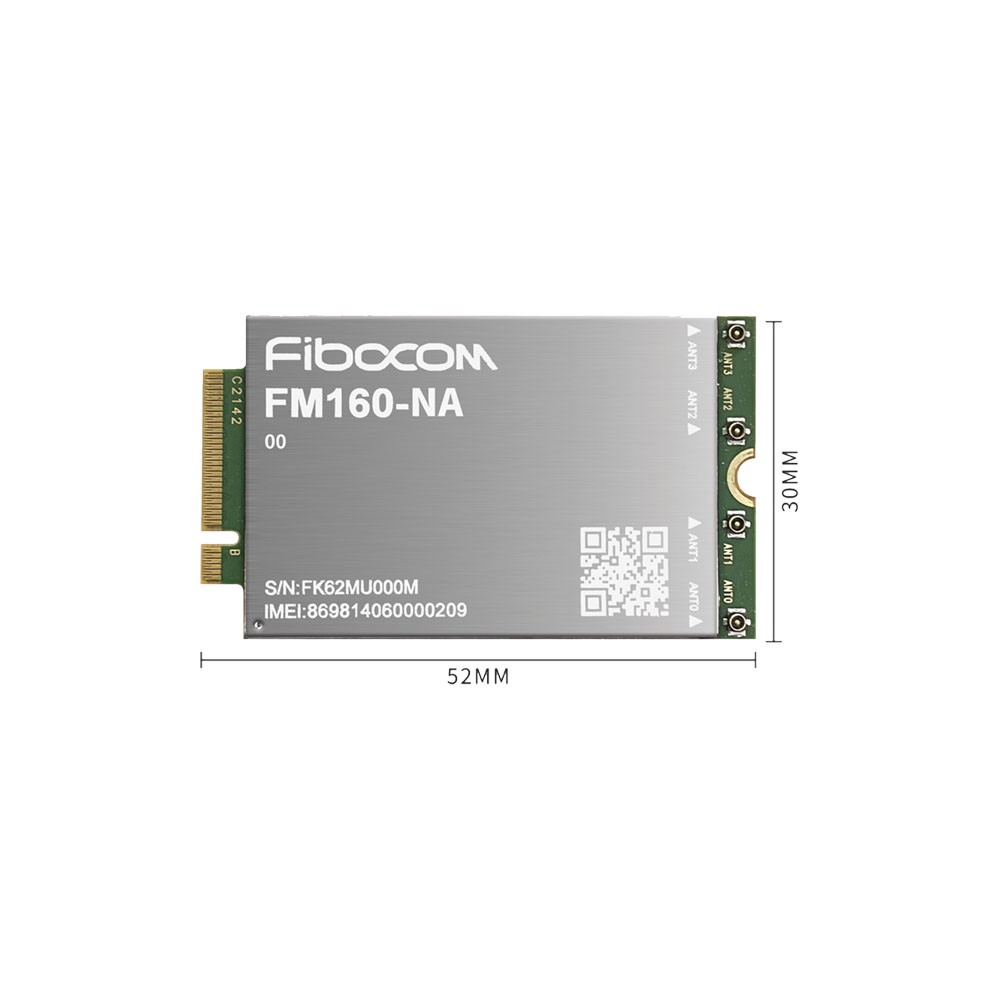

Fibocom FM160-NA module adopts M.2 form factor measuring 30x52x2.3mm. It is compatible with Fibocom’s 5G module FM150. The module also supports multi-constellation GNSS receiver (GPS/ Galileo/ GLONASS/ BeiDou), which provides high-performance positioning and navigation while greatly simplifies product design. Meanwhile, it supports a rich set of interfaces including USIM, USB 3.1/3.0, PCIe 4.0 and PCM/I2S, allowing much flexibility and ease of integration for customer's application.
With multiple Internet protocols and industry-standard interfaces for main operating, FM160-NA can be used a variety of cellular terminals such as CPE, STB, IPC and ODU. The module is able to cover mobile network in North America.
