FM101-CG

Fibocom FM101-CG-20 is an LTE Advanced Category 6 wireless communication module which supports LTE TDD Band 42/43/48. Featuring 3GPP Release 12 standard, the module delivers maximum downlink rates of 260Mbps and uplink rates of 30Mbps under LTE, exclusively designed to accelerate CBRS-based wireless network deployment in Global CBRS Region.

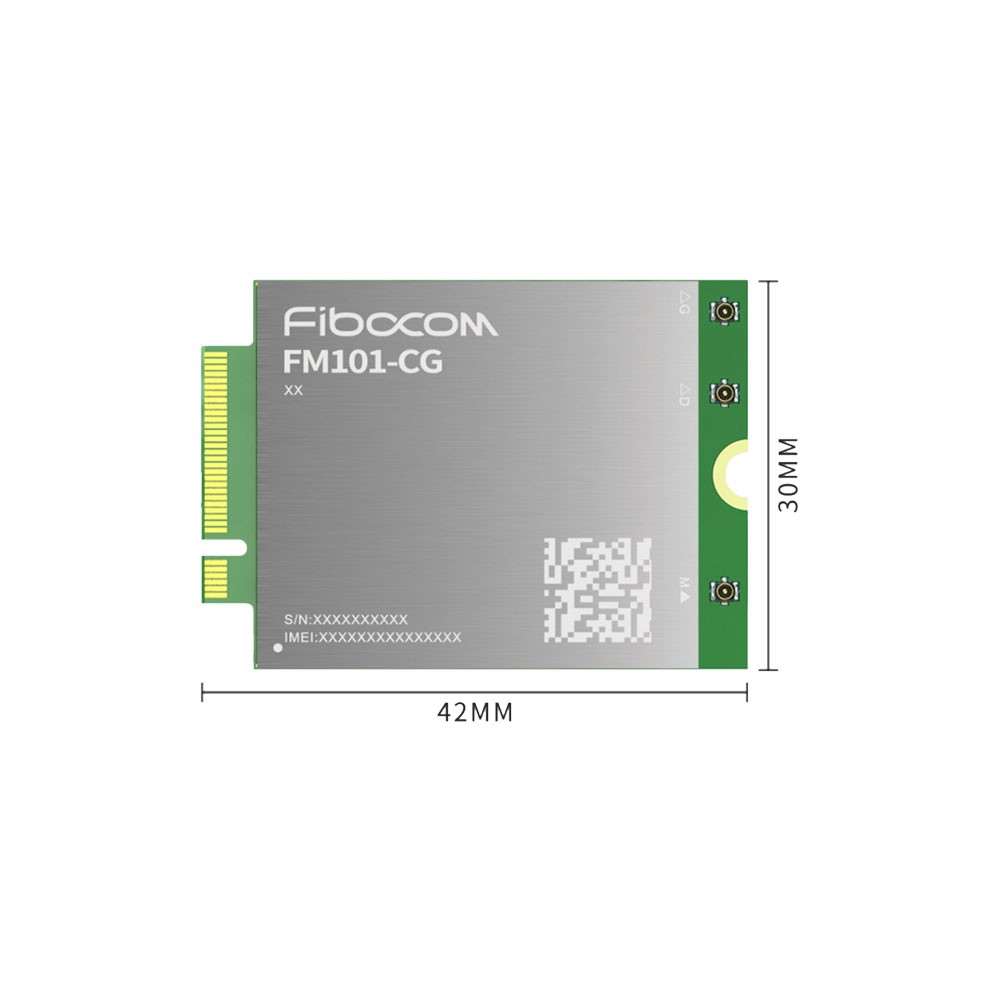

Powered by the Qualcomm Snapdragon® X12+ LTE Modem, the Fibocom FM101-CG-20 module adopts M.2 form factor measuring 30.0mm x 42.0mm x 2.3mm. The module also supports multi-constellation GNSS receiver (GPS/ Galileo/ GLONASS/ BeiDou), which provides high-performance positioning and navigation while greatly simplifies product design. Meanwhile, it supports a rich set of interfaces including USIM, USB 3.0/2.0, PCIe 2.0, PCM/I2S and UART, allowing much flexibility and ease of integration for customer's application.

With multiple Internet protocols and industry-standard interfaces for main operating systems (such as USB and PCIe drivers for Windows, Linux and Android), FM101-CG-20 can address the requirements of CBRS-based network applications for multiple scenarios, including but not limited to remote education, industry IoT, smart cities, etc. The module is able to cover mobile network in Global CBRS Region.
