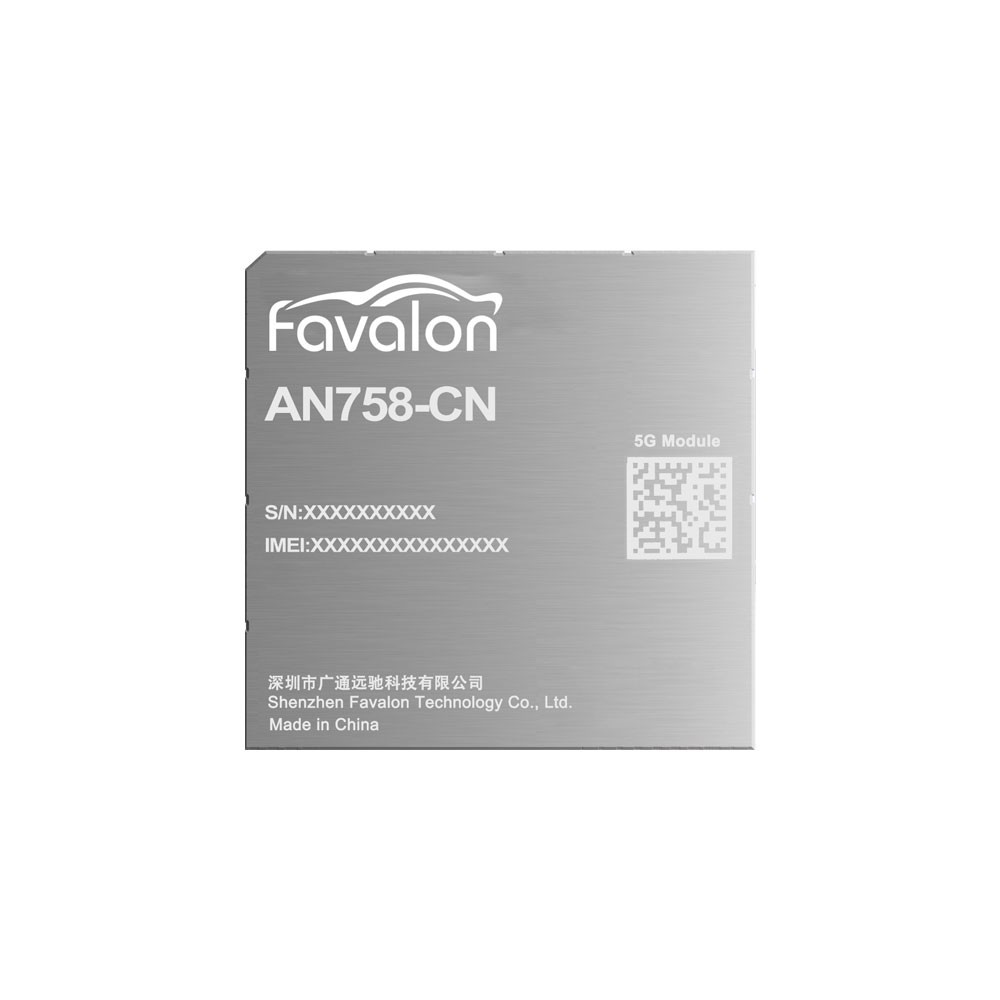

AN758 is a 5G vehicle scale group designed by Guangtong Yuanchi specifically for the Internet of Vehicles based on the MTK2735 platform. It supports 3GPP Release 15 technology, SA and NSA modes, and has multiple formats including Sub-6G, LTE FDD, LTE TDD, UMTS, GSM, and supports Multiple Input/Output Technology (MIMO). Built in with excellent performance processors and MCPs, it has high computing power and achieves ultra high speed. It supports Sub-6G speeds up to 4.2Gbps for downlink and 625Mbps for uplink, and LTE speeds up to 1.6Gbps for downlink and 200Mbps for uplink.
AN758 adopts LGA packaging, with a size of 48 × 48 × 3.3mm, built-in HSM encryption chip and IMU gyroscope, built-in multi constellation and multi frequency (L1+L5) GNSS receiver, supporting GPS, GLONASS, BEIDOU, GALILEO, QZSS multi positioning systems, meeting the application needs of users for fast and accurate positioning in complex environments.
AN758 provides a complete solution specifically for the automotive field of high throughput, high bandwidth, ultra-low latency, and high reliability. It can quickly adapt to TBOX, ADAS, OBU, RSU, TCAM and other automotive ECU products, providing users with a more intelligent and safe driving experience.
